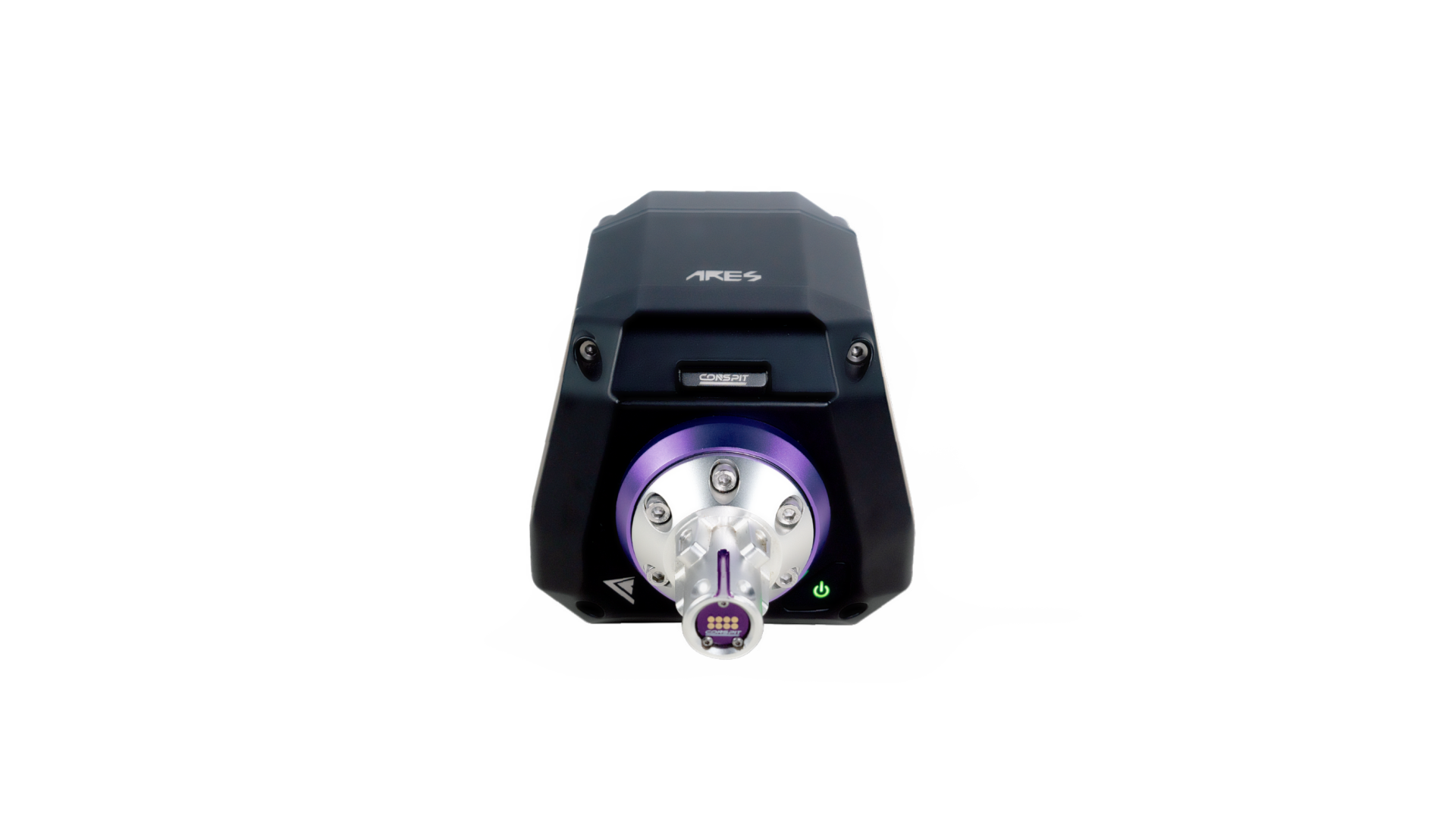

Conspit Ares 12Nm

Excellent performance

Designed for sim racers seeking the ultimate racing experience, the Ares features a high-resolution 23-bit optical encoder and a high-precision, direct-drive, skew-pole motor specifically developed for sim racing. Combined with an optimized, high-performance force feedback system, it delivers an unparalleled, ultra-smooth driving experience.

23-bit optical encoder

The Ares series is equipped with a high-precision optical encoder with an angular resolution of less than 0.01° and a resolution of 23 bits. Compared with commonly used magnetic encoders on the market, it provides significantly higher accuracy and stability. Unlike magnetic systems, the optical encoder effectively eliminates consistency and alignment errors, resulting in smoother and finer force feedback and a significantly better driving experience.

Comparison - optical vs. magnetic

The optical encoder used in the Ares Wheelbase shows superior performance compared to magnetic encoders with the same resolution

Advanced Force Feedback Dynamics ties

The Ares entry-level series is equipped with an advanced motor control system that ensures stability, efficiency and precise positional accuracy during force feedback. With a torque change rate of up to 9.5 Nm/ms, it captures even the smallest details.

Specialized for the task at hand

Unlike standard industrial servo motors used by other brands, Ares features a patented motor design that is specifically designed to meet the unique requirements of a racing simulator. It optimizes steering feel, steering feedback, and stability, providing:

• Lightning-fast torque response

• Minimal torque fluctuation (less than 2.3%)

• Ultra smooth control

• Precise control

Double beveled pole design

The double-slant pole design, where both the stator and rotor poles are slanted, optimizes gear torque, significantly reducing torque ripple, electromagnetic vibration and noise, resulting in excellent NVH (noise, vibration and harshness) performance.

Ultra high torque density

Compact size, huge power. By utilizing ultra-high magnetic permeability cores and powerful NdFeB magnets, along with an optimal air gap ratio and high slot fill factor, this motor achieves high torque density and delivers powerful output.

Minimum gear torque

After several simulations and prototype iterations, Ares perfected the electromagnetic design. A two-pole stator and rotor with tilted poles, a high slot-to-pole ratio, optimal air gap, and precise magnetic circuit minimize torque and provide an exceptionally smooth steering feel.

Advanced thermal management

High-frequency real-time system temperature monitoring ensures stable operation of the motor and control system, providing exceptional thermal management performance.

Exclusive real torque testing

At CONSPIT, we reject virtual claims. During the development of the Ares wheelbase, we used precise, industrial-level testing to ensure that all performance data was backed by real-world evidence. Validation included a highly accurate dynamic torque sensor positioned between the wheel and the engine output shaft with a resolution of sub-0.01 Nm and a response rate of up to 1 kHz. This allowed for real-time monitoring of the actual torque at the driver’s hands, accurately matched to signals reported by the engine for precise performance tuning.

Accurate calibration and optimization

In addition to accurately calibrating torque parameters, The Testing also offers a reliable tool for objectively quantifying the basic feel settings. Characteristics such as torque dynamic range, sensitivity and high-frequency noise, which strongly influence feel, can be evaluated and optimized.

Innovative industrial design

With a sleek, compact profile and visually lightweight design, ARES offers a multi-angle aesthetic experience that exceeds both visual and performance expectations.

Victory with details

Made from high-quality aircraft-grade aluminum alloy with a proven heat dissipation design, ARES ensures exceptional durability, endurance racing reliability, and a premium texture through advanced shaping and surface treatments.

POGO module for future expansion

The front of the base is equipped with magnetic contacts for easy installation and future expansion of various functional components.

High security design

Dedicated safety mode ensures driver protection and allows children to play safely under supervision parents.

Conspit Link 2.0

Easily configure wheelbase functions, fine-tune FFB, monitor status, and create custom presets with Conspit Link 2.0 software. Includes official presets created by professional drivers and vehicle dynamics engineers to quickly switch between games or vehicle settings, including presets from renowned professional drivers like Laurin Heinrich.

CDP quick release system

The Ares wheelbase features the CDP QR system, a Formula-inspired CNC-machined 7075 aluminum clip and ball-lock mechanism for precise torque transfer and positioning. Spring-loaded contacts provide EMI-resistant stability, while optimized geometry prevents wear and ensures play-free durability under high loads.

CES emergency stop (optional)

External emergency stop switch that allows quick deactivation of the Ares motor, suitable for coaching, offline simulation racing centers and children's games under parental supervision.
