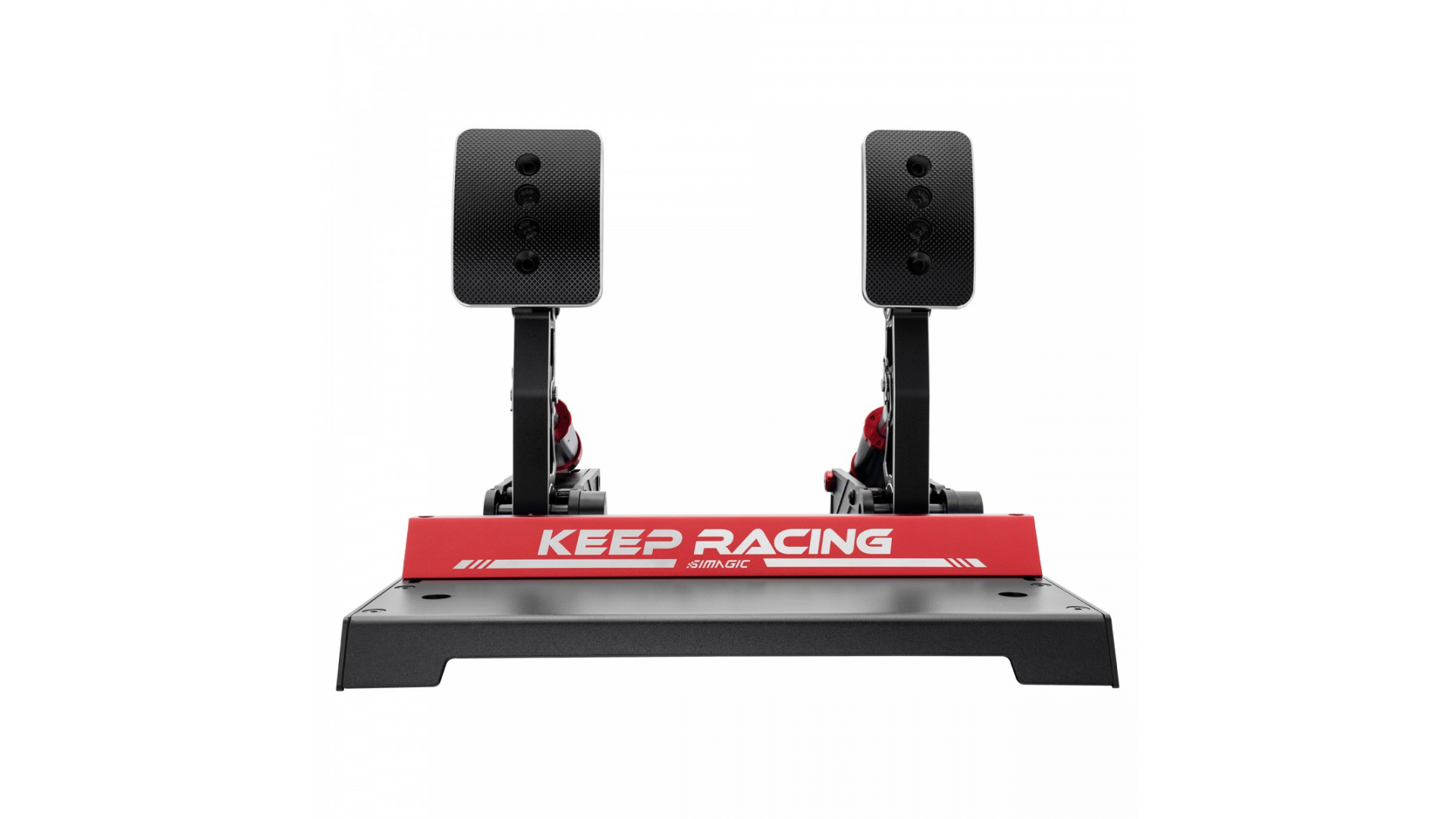

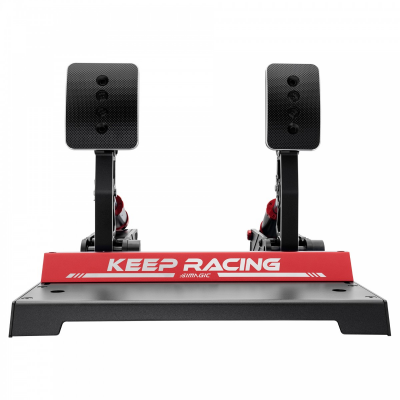

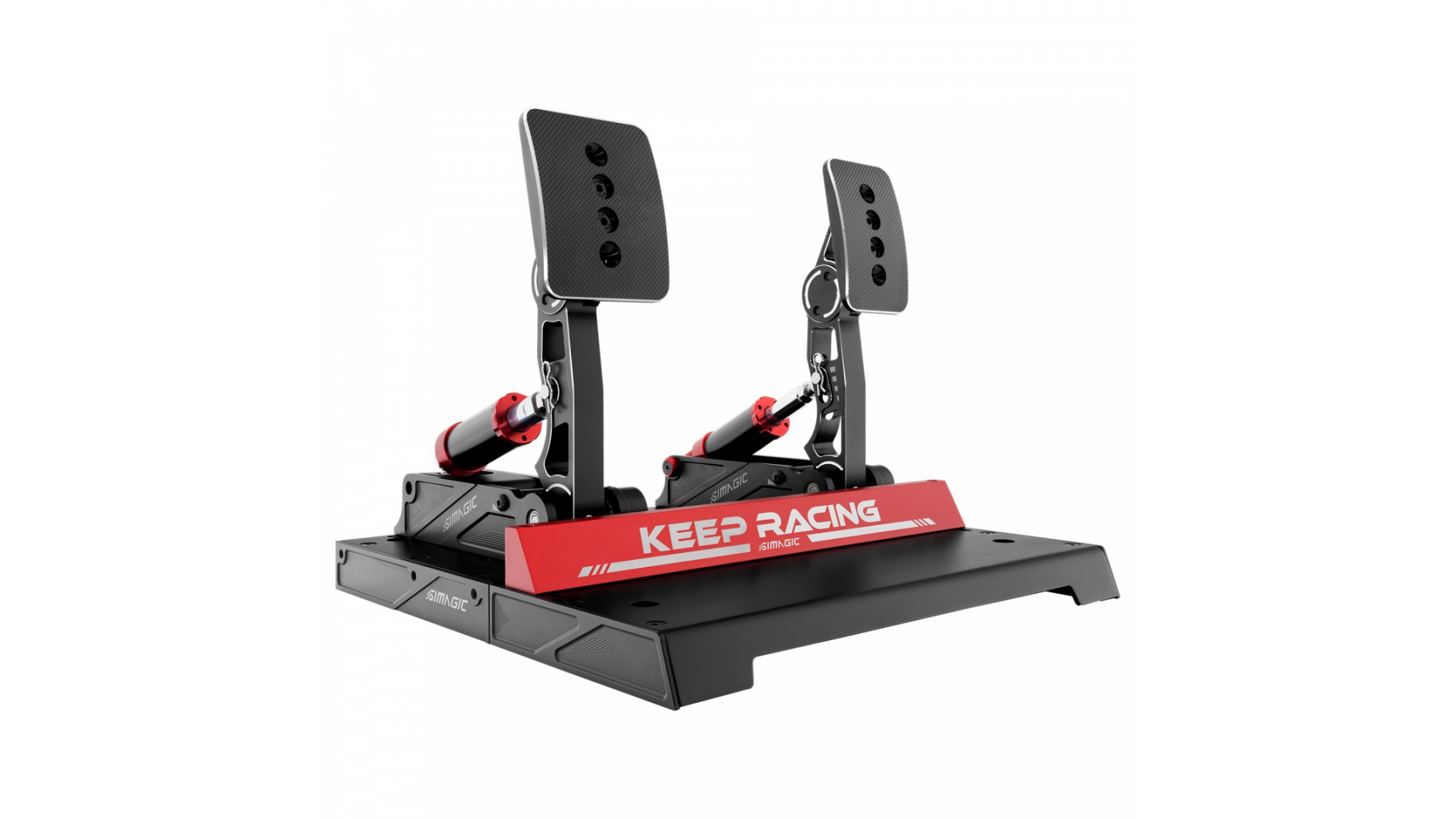

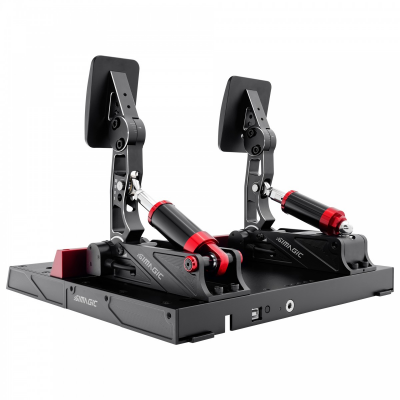

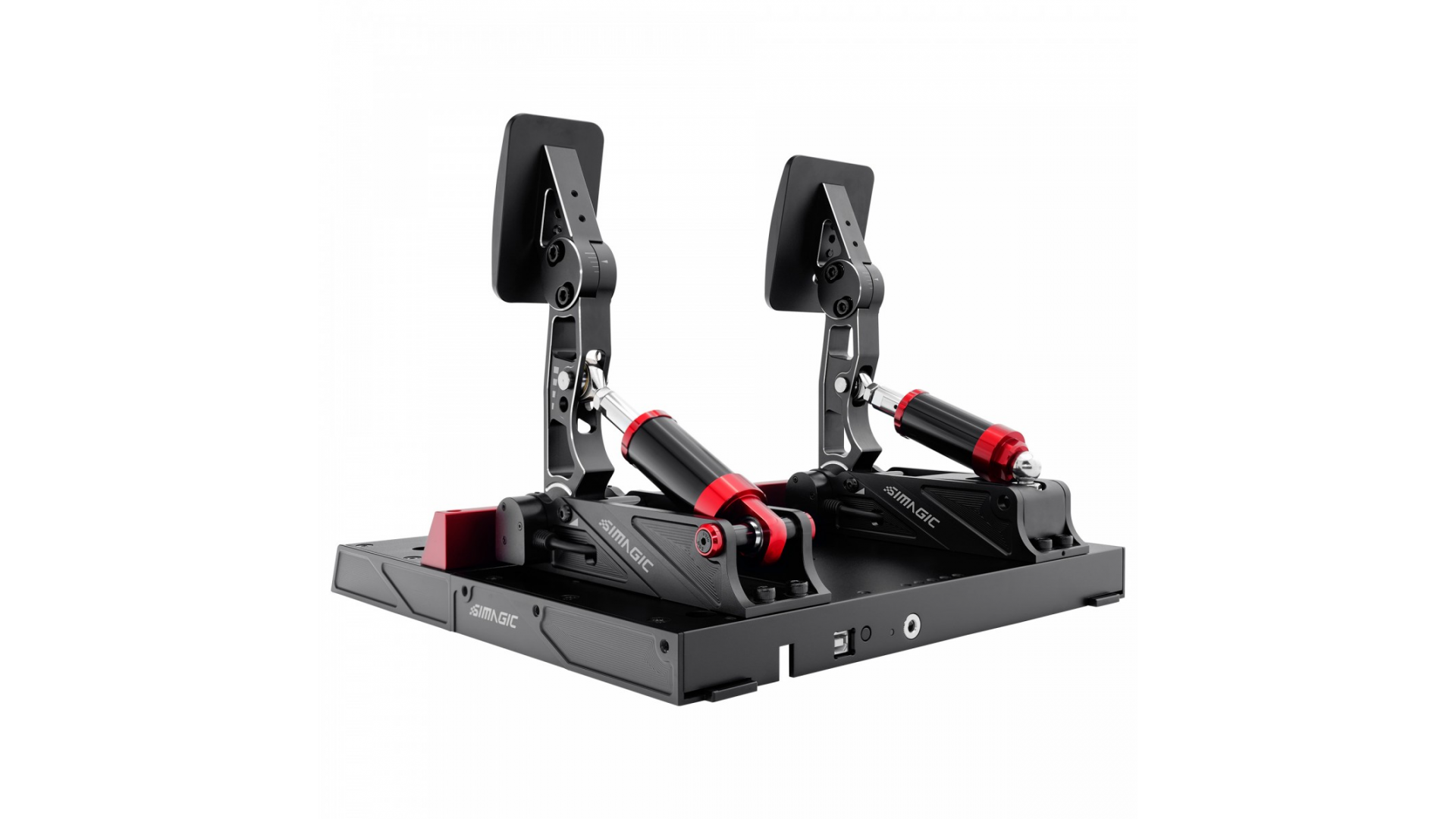

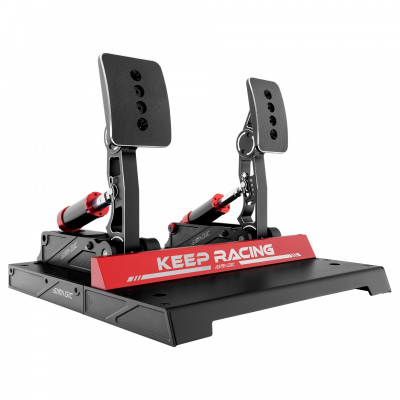

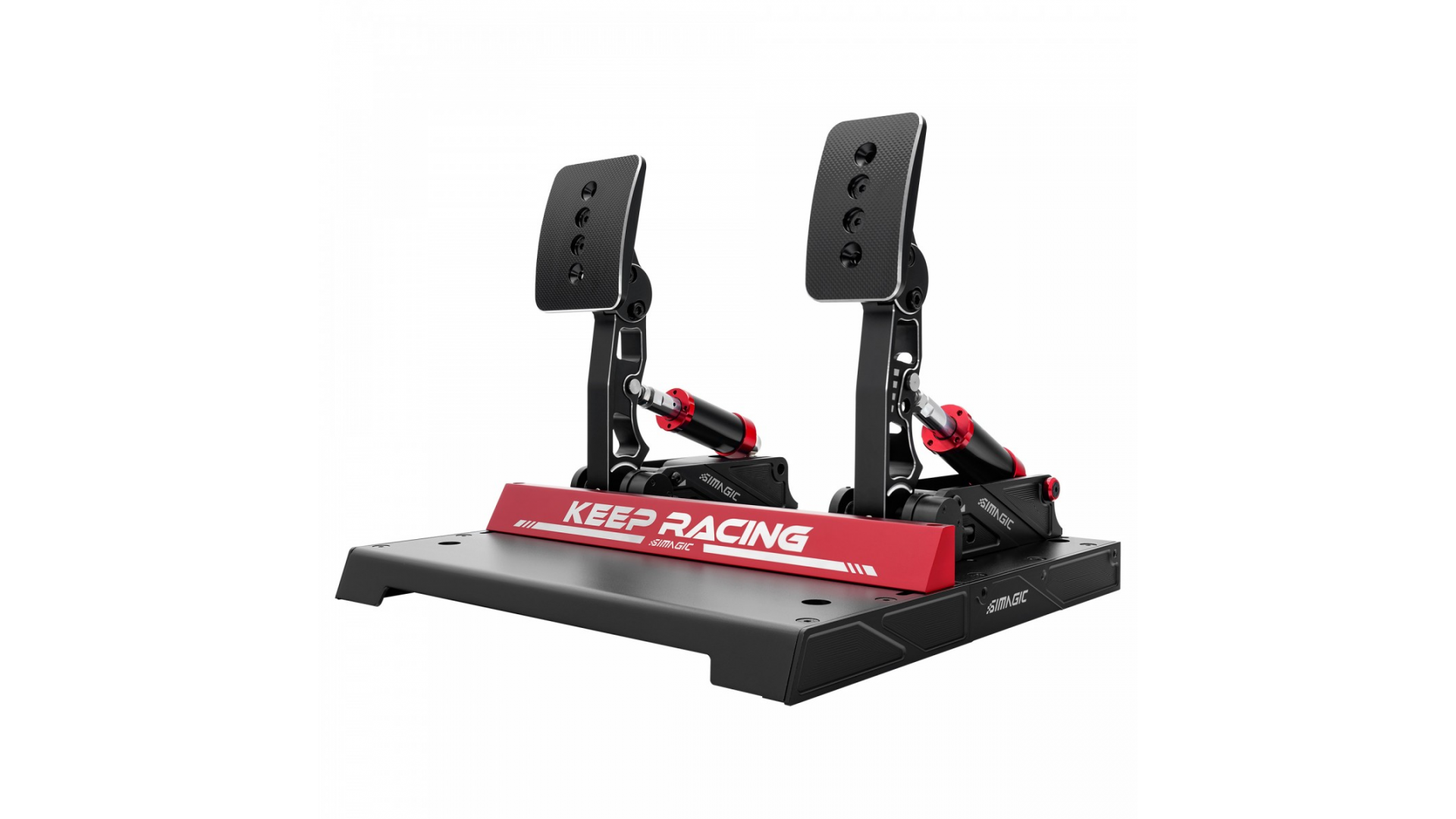

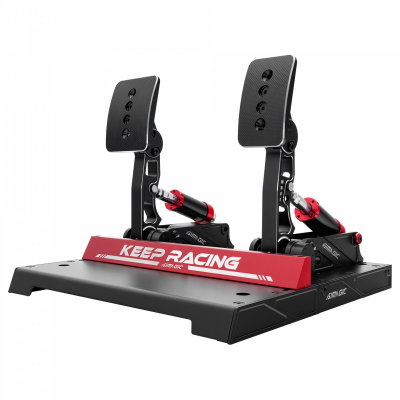

Load Cell pedals SIMAGIC P1000 formula (gas + brake)
Modular integrated design, quick replacement of rubber pads supports free combination.
Up to 27648 different patterns can be combined, enough to satisfy all preferences
Load Cell and Hall angle sensor can be switched freely
For road vehicles with long braking distances, Hall sensors are more accurate.
For racing cars with short brake travel, Loadcell sensors are more accurate.
Simagic brake assemblies have undergone very demanding tests, for example, 200,000 intensive braking cycles without failure or loss of accuracy.
All-metal construction (aluminum and steel)
TECHNICAL SPECIFICATIONS:
Resolution: 12 bits (4096)
USB connection: PC, Simagic wheelbase (Can-Bus port)
Adjustable travel: Supported
Adjustable spring force level: Supported
Halll Angle sensor/sensor sensor: Brake
LoadCell sensor: 100 kg
Haptic Pedal Reactor: Supported
Hydraulic cylinder: Optional
Pedal Plates: Anodized Aluminum Alloy
Angle/Position Adjustment: Supported
Adjustable linearity: Supported
Adjustable braking force: Supported
Adjustable dead zones: Supported
Pedal control box: Included
Construction material: CNC aluminum alloy
Dimensions: 348x489.8x368.5mm
Weight: 7.6 kg
