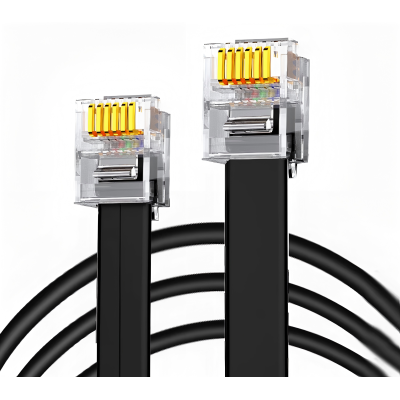

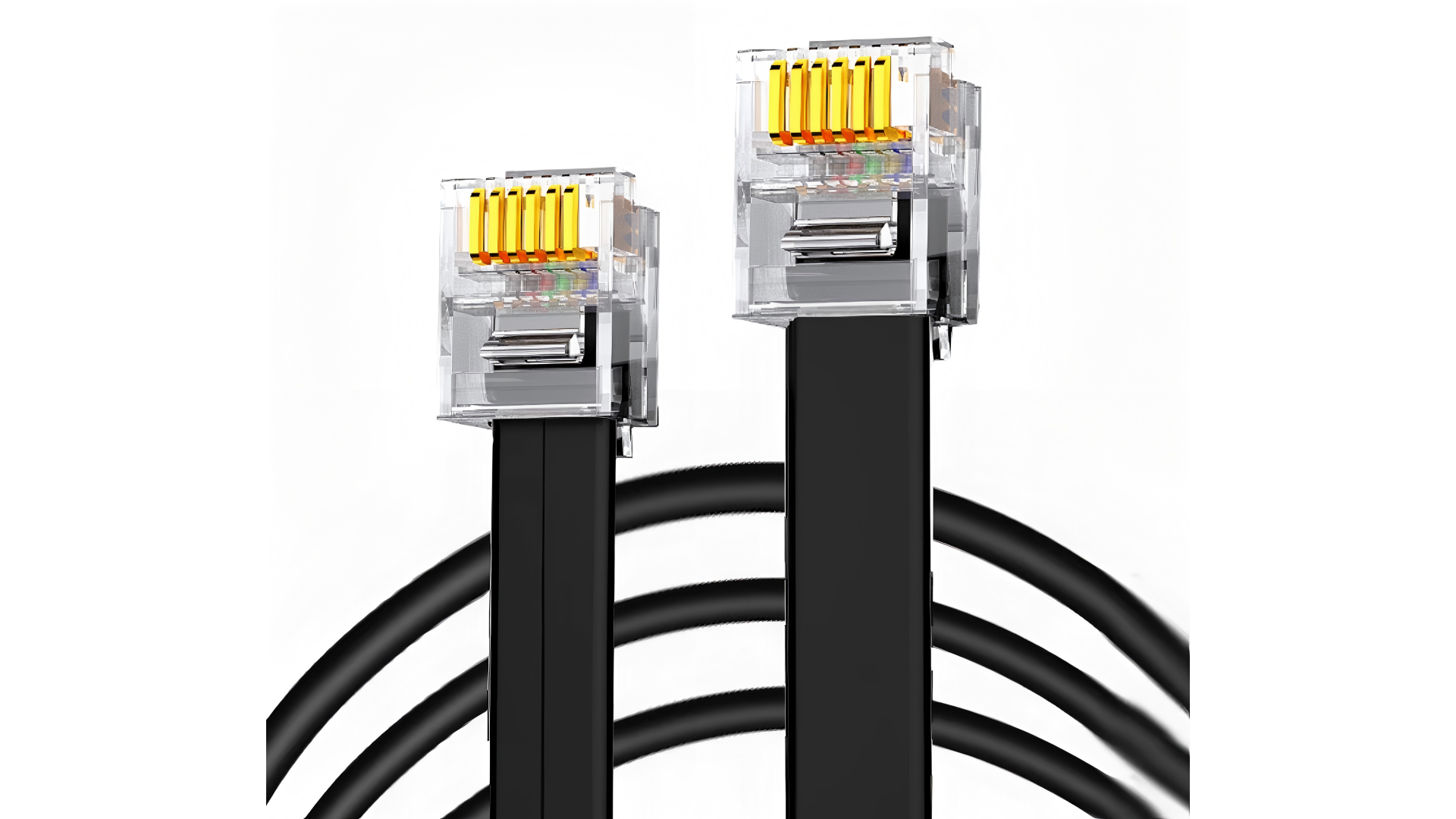

SimNet RJ12 – combine SP Pro pedals with Fanatec base

The SimNet RJ12 cable allows you to connect the SimNet SP Pro Loadcell directly to Fanatec wheel bases. This eliminates the need for additional adapters or USB drivers - the cable allows full integration with the Fanatec ecosystem on both PC and consoles.

The standard RJ12 connector provides full compatibility with Fanatec bases that support the Loadcell signal. This means your SimNet SP Pro pedals work as if they were original Fanatec pedals - but with the extra precision and quality that SimNet technology is renowned for.
How to connect SimNets to the console?

Connect the SimNet SP Pro pedals to the Fanatec base via an RJ12 cable.
Launch SimNet Manager on your PC and go to: Pedal → Miscellaneous → Analog Output Settings.
Turn on each channel (clutch, brake, throttle).
Set the output signal: 0.5V – 2.9V (non-inverted).
Save the settings - from now on, the Fanatec database will see the pedals as their own.

See also the presentation video: Simnet SP Pro Pedal Connect directly to the Fanatec wheelbase.
SimNet on console

There is no option to configure pedals on PS4, PS5 and XBOX consoles. Therefore, the entire configuration must be done on the PC first. Once set up in Sim Connect Manager, the Fanatec base treats the SimNet pedals as its own, so they work immediately on the console - depending on the compatibility of the given control base.

The SimNet RJ12 cable is made of a flexible and resilient material that withstands long-term and intensive use. The Solid RJ12 connectors guarantee a stable signal and the appropriate cable length allows for convenient installation in the cockpit.
Key features

Compatibility with Fanatec bases (RJ12)
Works exclusively with Sim Connect Manager software on PC
Support for PS4, PS5 and XBOX – according to Fanatec compatibility database
No need useUSB adapters
High quality RJ12 cables and connectors
