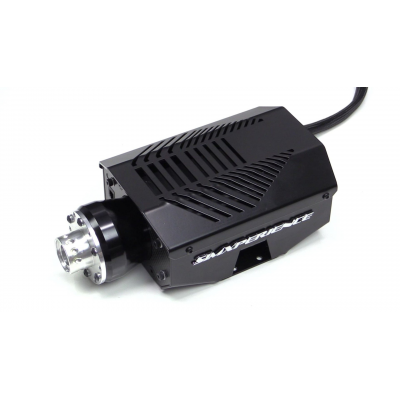

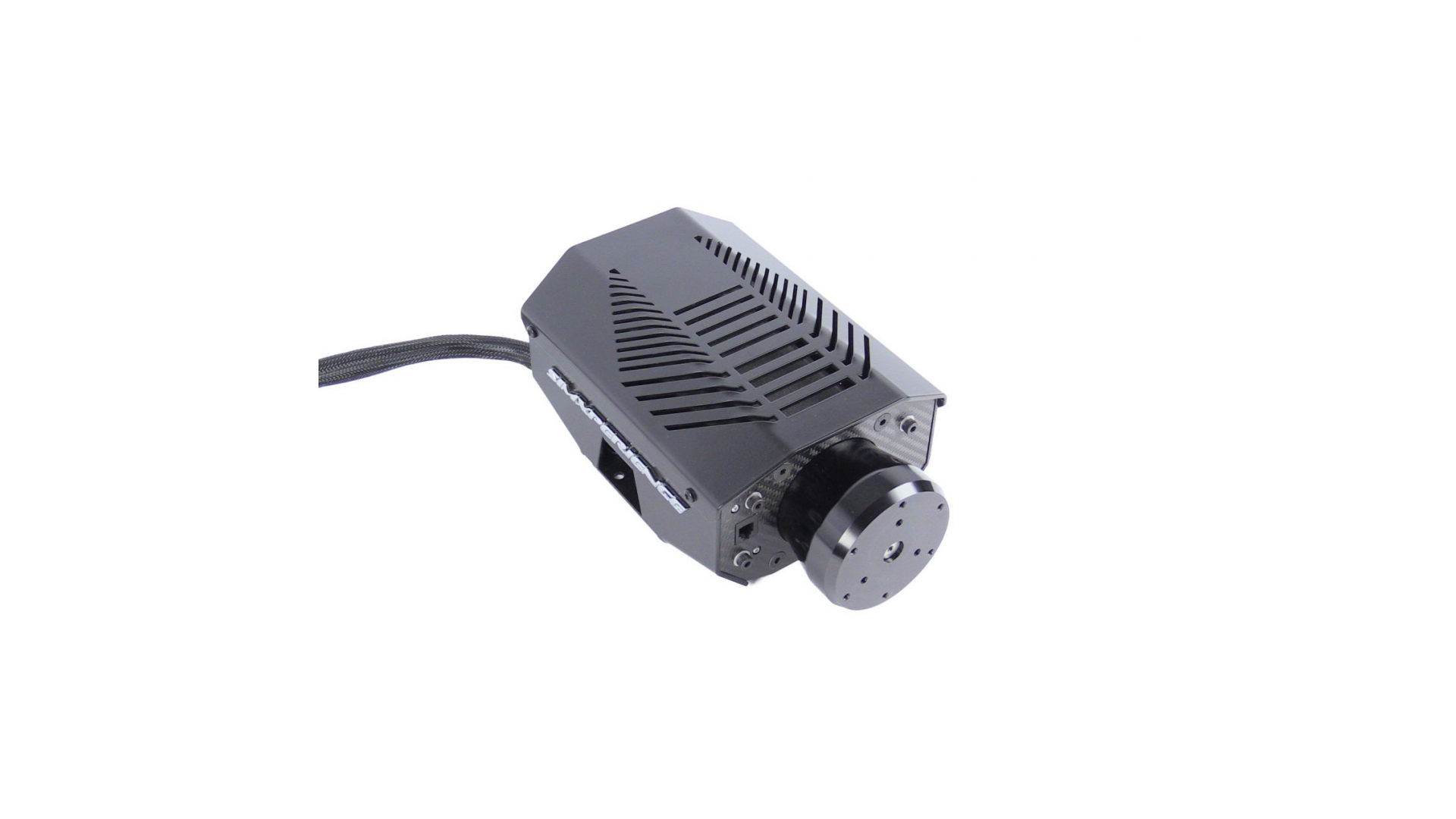

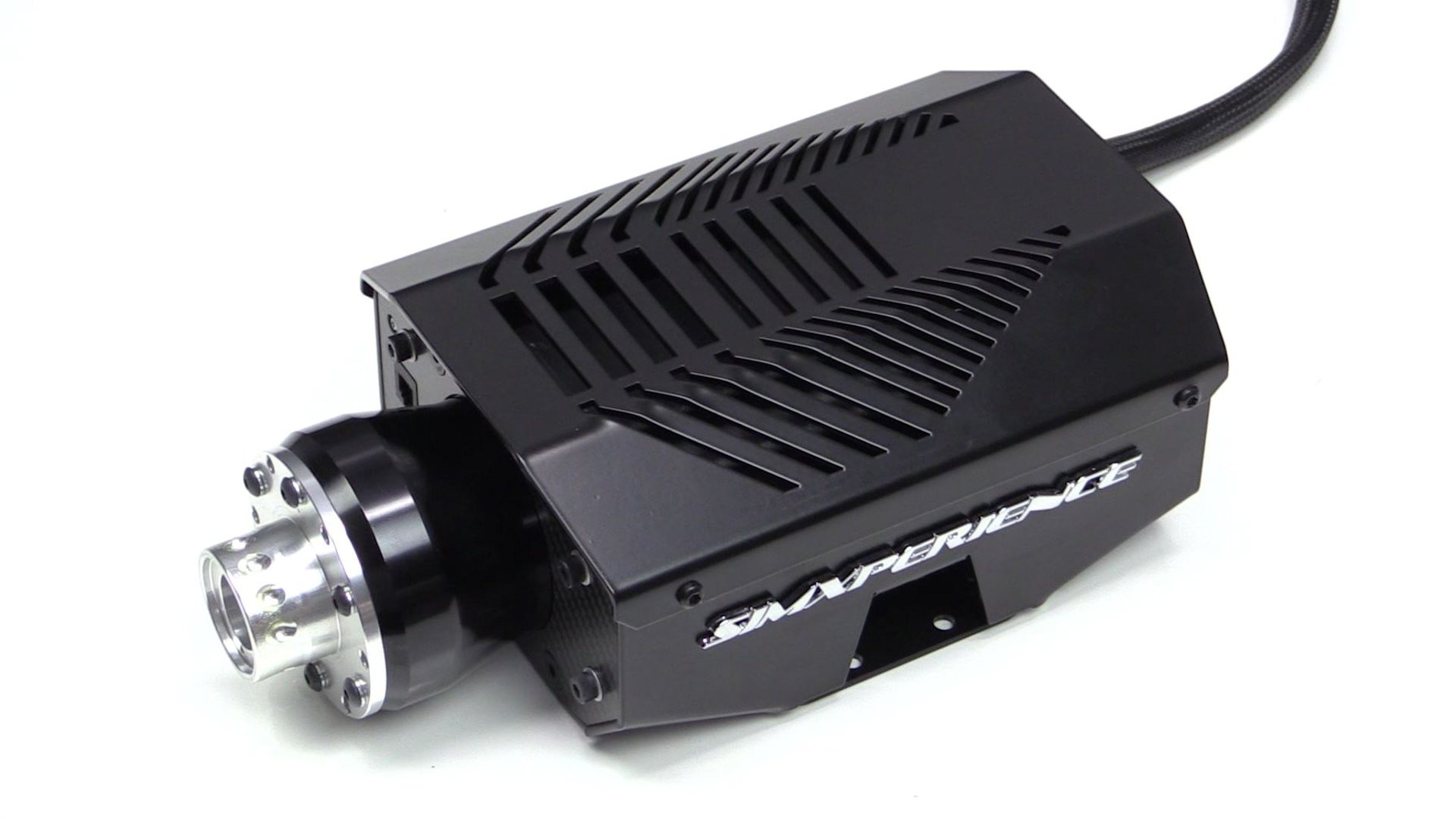

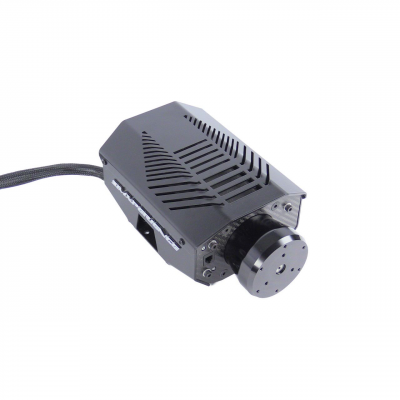

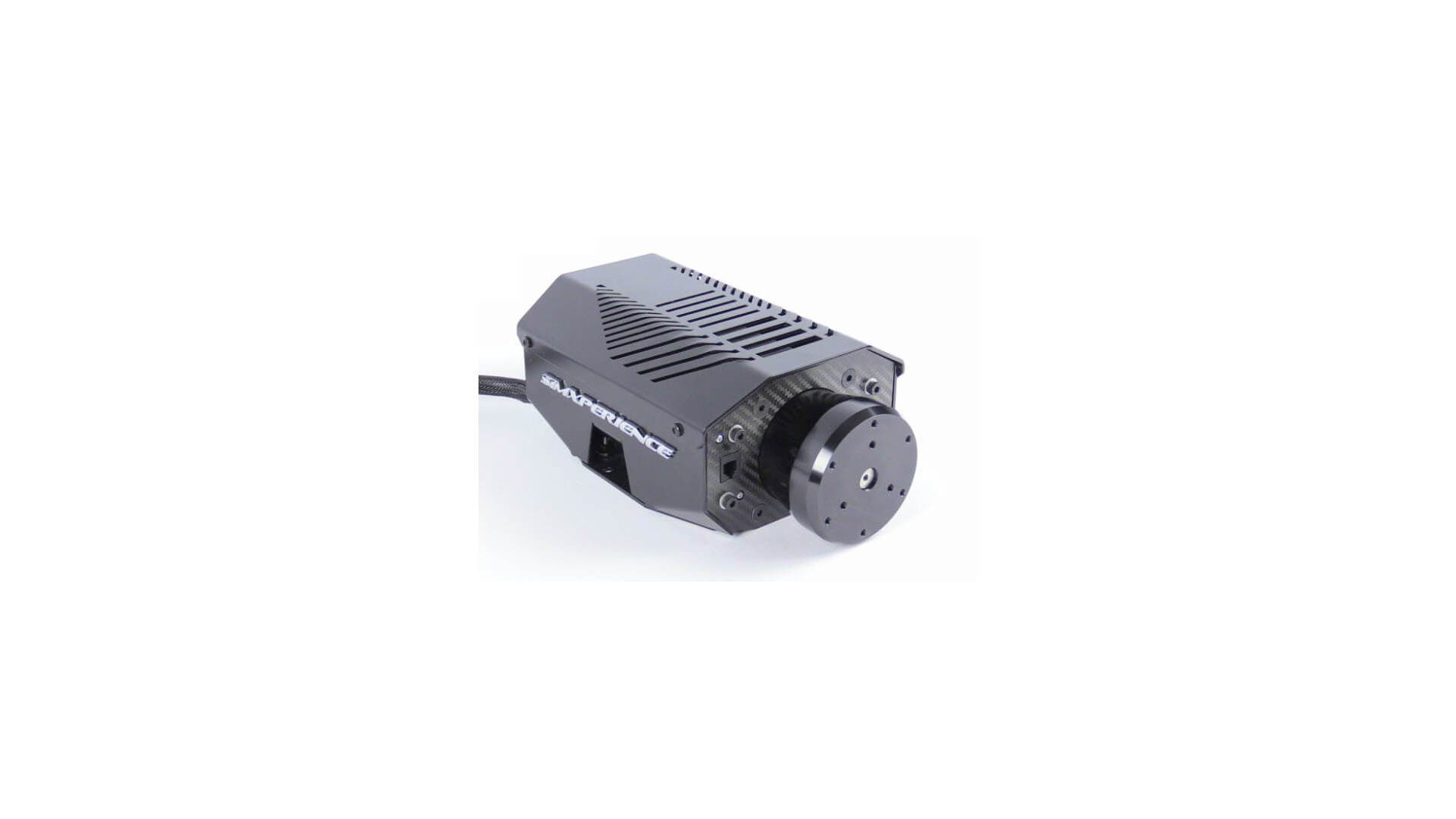

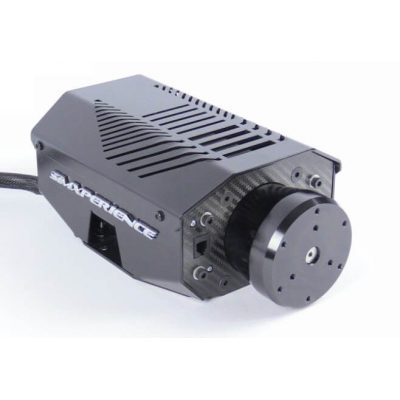

SimXperience Accuforce Pro V2 Direct Drive base

The SimXperience AccuForce Pro V2  is a professional racing simulation steering system. When combined with todays best racing simulation games, the AccuForce Pro is as close as you can get to driving the real thing and is delivered in a convenient, ready to run, plug-n-play package.

The key to it's incredible realism is our groundbreaking direct drive motor control system. We've engineered an integrated motor controller / PC interface as opposed to communicating between two different circuit boards as is common in the industry. This allows the AccuForce to provide lower latency, better response and more accurate detail reproduction than competing direct drive systems. Combined with a motor that's specifically designed for racing simulation, the AccuForce system provides the best possible balance of torque, response and most importantly, fidelity and linearity. The end result: a driving experience that's second only to the real thing.

Controller & Base Unit Features

    Unparalleled Steering Feedback Quality & Realism

    Direct Drive Force Feedback System (Wheel connects directly to motor shaft, there are no belts to slip, wear or absorb critical detail)

    Powerful, Low Inertia Motor supports up to 13Nm of sustained torque depending on the user selected mode *

    Easily dial back the forces for safe use by friends and family

    User selectable modes (similar to those on a stereo) allow easy selection of linear performance, peak performance, soft performance, child mode, etc.

    Extreme efficiency (Up to 13Nm sustained torque at 100% stall for 30 minutes with 2°F temperature rise over ambient with 0% torque loss due to heat fade)

    Excellent balance of torque and torque resolution results in an extremely refined and realistic feel

    Torque peaks are removed by default to ensure a truly 1:1 linear experience (option to enable peaks is provided)

    Up to 2000Hz Communication Rate via SimXperience Dual Stream Technology (1000Hz from Game / 1000Hz from Sim Commander software)

    Motor updated 50,000 times per second / Realtime encoder processing

    Lowest possible latency / lag due to integration of controller and motor drive system on a single circuit board and custom motor design

    4500 degrees of rotation, configured for 900 degrees by default. User may opt to alter this setting in real-time. Coiled cable limit is 1080 degrees.

    16,000 PPR (pulse per revolution) positional feedback

    16-bit control loop resolution

    Game provided instruction to movement time of less than 2ms (1ms to instruct + 1ms for game to read back instruction is a round trip 2ms)**

    Engineered for many years of reliable service in commercial environments. (Critical parts are stress tested for 300lb loads)

    Includes FREE Sim Commander SimVibe and Steering system tuning / analysis software suite

    Three force feedback (FFB) options: traditional raw game FFB, SimXperience / user optimized game FFB and completely user definable FFB

    Robust tuning capability via touchscreen or in game heads up display via included software

    Easily auto-optimize feedback for your driving style, driving line and a particular car/ track combination

    Firmware updates are automatically delivered and install in seconds with a single button click. No need to hunt for them on a website

    Expansion ports for additional displays, buttons, pedals or rotary encoders

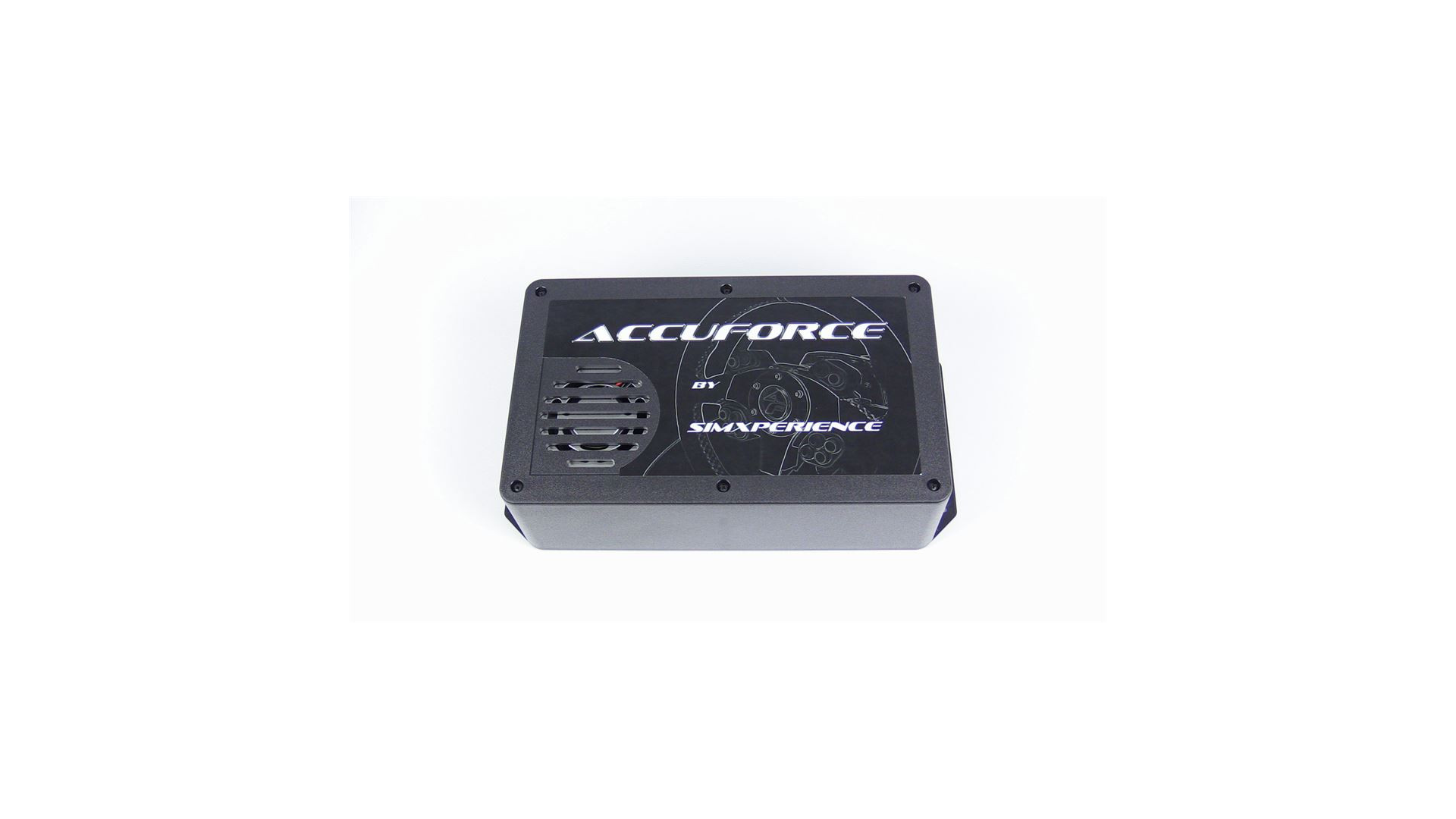

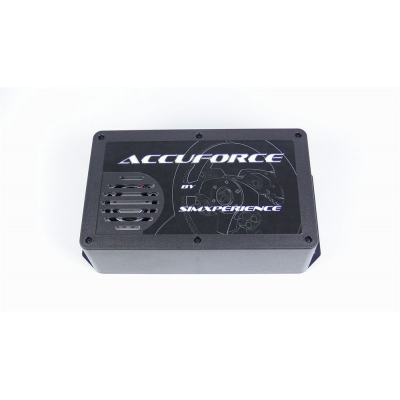

The package includes: Power supply and control unit, Steering wheel base with adapter for steering wheel mounting. Quick release is not included.
